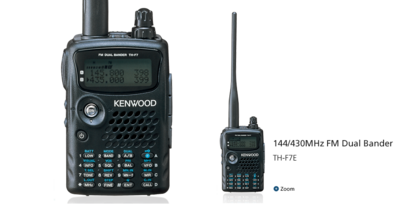

Kenwood TH-F7E

Being a lover of this handheld transceiver, I'd like to put down some notes. I own this model more than a year, so I think I had enough experience with it.

A list with PROS and CONS from my point of view:
PROS:

CONS:

Overall its a good portable transceiver. I took it with me in every trip I did and it never disappointed me, many times I've enjoyed listening to SSB QSOs on HF bands with small piece of wire antenna when VHF/UHF bands were dead. Another minuses could be, but I didn't considered them as CONS, long charging time (about 6-8hours), its price and the original antenna which is a poor VHF antenna - it only works reasonable within 437-460MHz (mine), measured with EMF meter.


Accessories

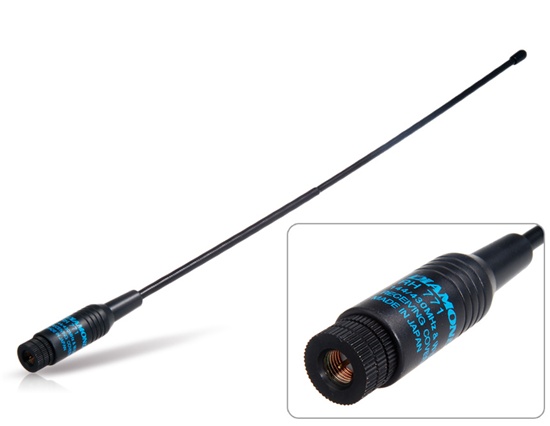

Diamond RH-771 Antenna

Given by a friend (YO9IMR), the RH-771 is a dual band 2m/70cm with wide band coverage antenna. Is a bit long, about 40cm long, but we know that short and tiny antennas are poor antennas. Anyway, it works great with TH-F7E, it beats the internal bar antenna begining with 3.5MHz, so you can have a good reception on HF compared with internal bar antenna. It has good reception on VHF, UHF, broadcast FM band 60-108MHz and 108-132MHz (AirBand). Many times I switch between RH-771 and stock antenna depending where I'm going. For example, if I go down town with friends I'll take the short stock antenna, but if I go on the mountain or on a rugged terrain I'll opt for the RH-771.

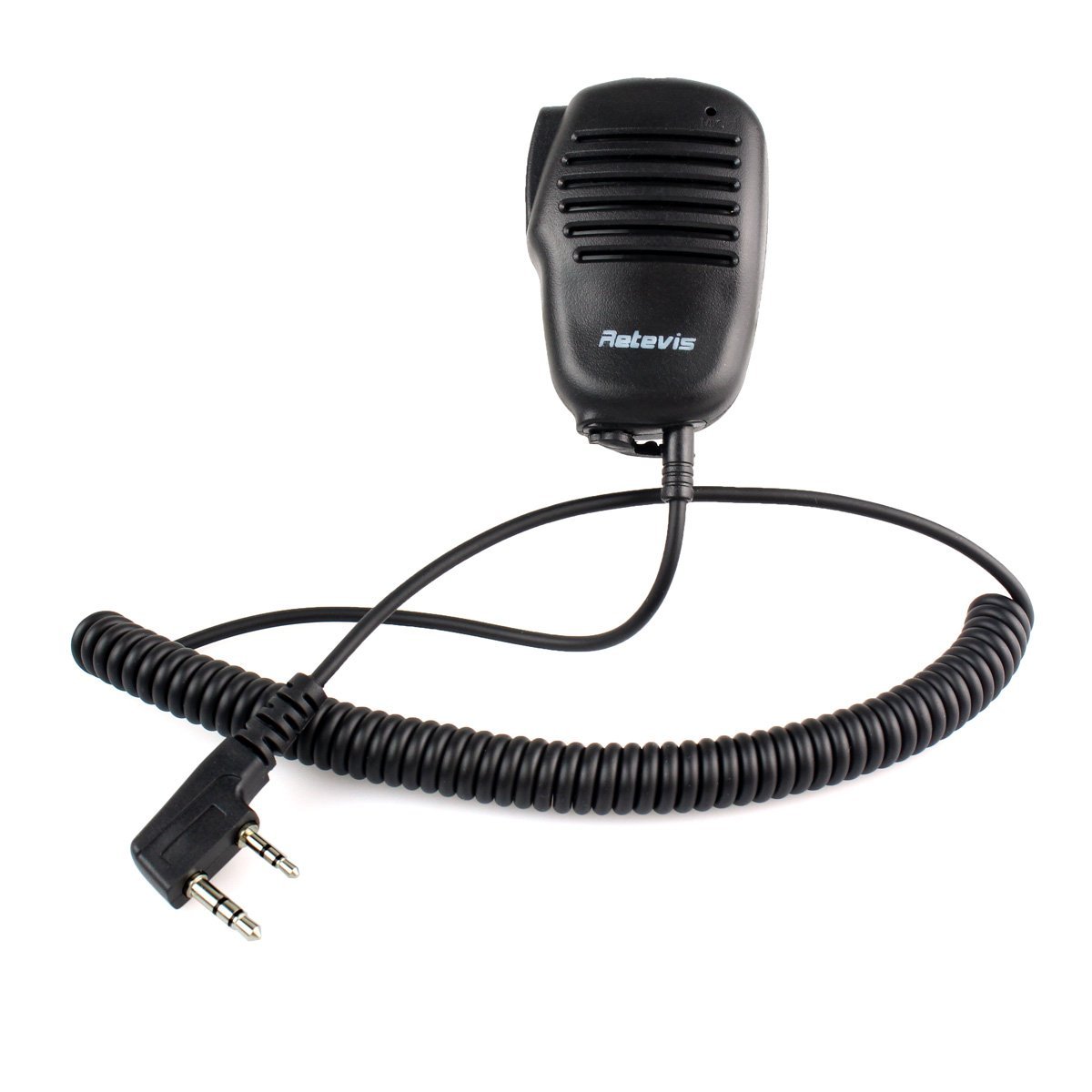

Retevis Microphone 2 Pin Mini Rainproof

I've bought two of these from Amazon because they were cheap and had 3.5mm audio output jack which seemed useful to me. I tested only one of them, worked great with my TH-F7E, good audio output, loud and clear modulation, small size.

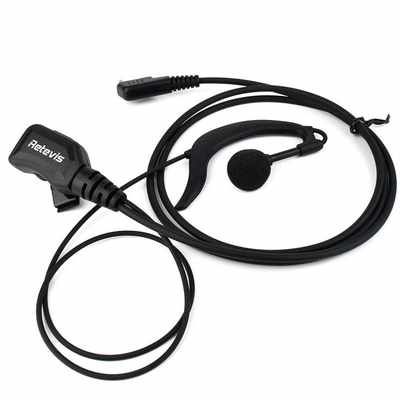

Retevis R-111 G Type Volume Control

Bought from Amazon too, this earpiece ptt works great with TH-F7E, it can be switched for left or right ear, it has a volume control dial, but the audio is a bit stifled both for microphone and earpiece.


Documentation

TH-F7E Brochure
TH-F6A Brochure
TH-F6A/TH-F7 Instruction Manual
TH-F6A/TH-F7 Service Manual 2007
TH-F6A/TH-F7 Service Manual 2001
TH-F6A/TH-F7 Service Manual Supplement 2001
TH-F6A/TH-F7 Serial Protocol
TH-F6A/TH-F7 All Mods

My Mods

MARS/CAP Mod

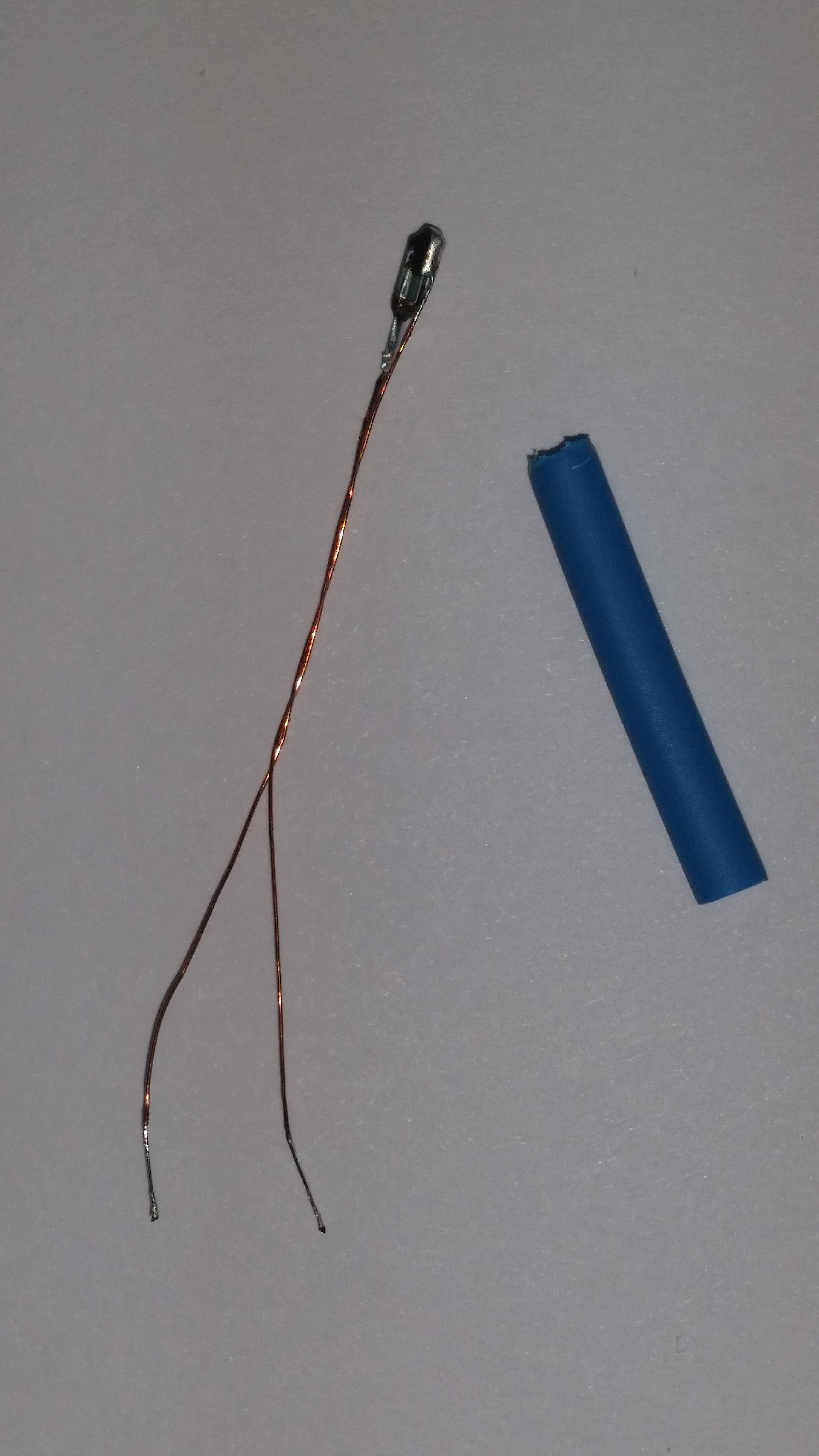

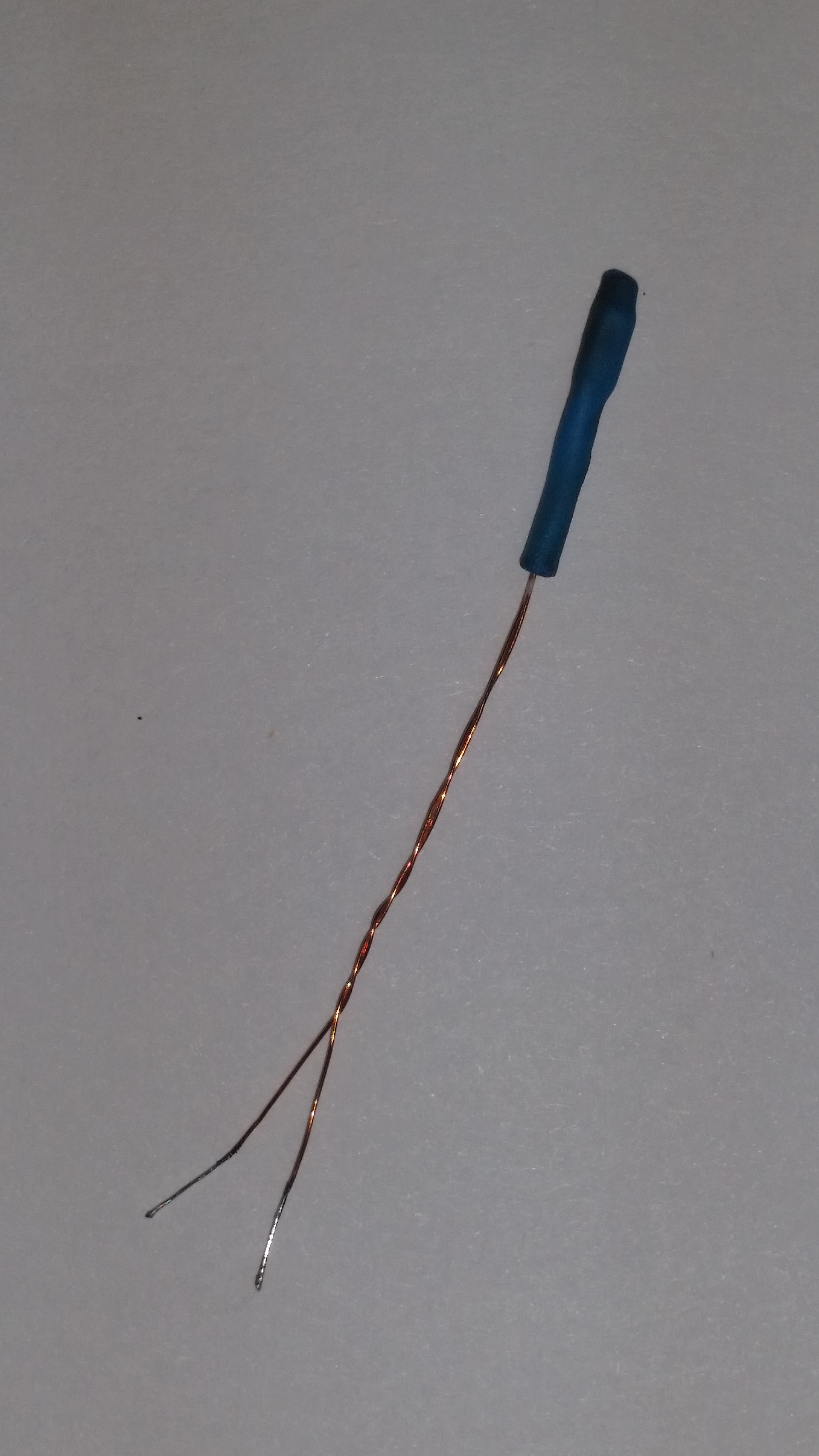

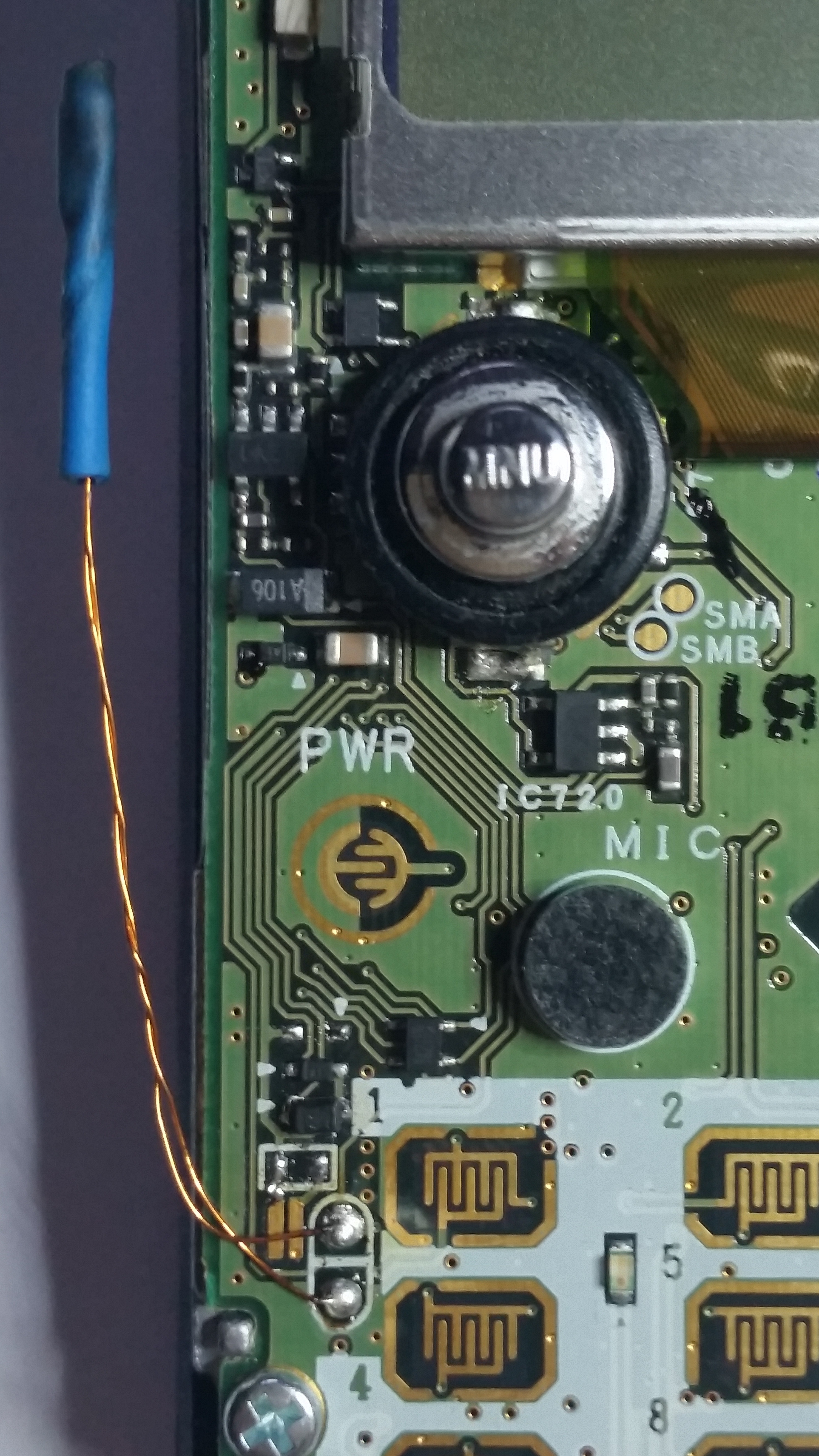

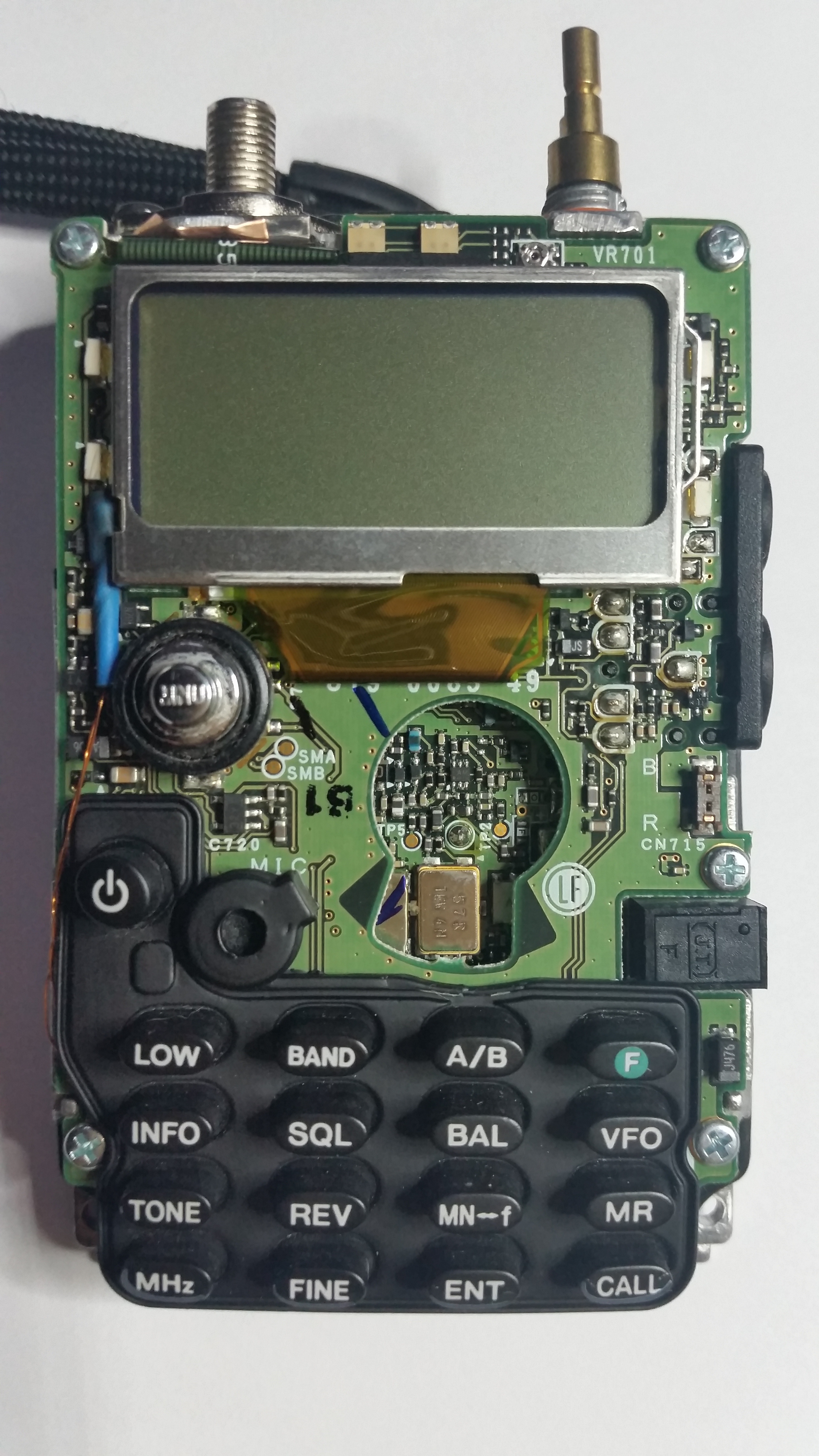

According to above documentation (service manual and "all mods" docs), by removing type settings diode D704 and R701, the transmit range will become 137-174MHz and 410-470MHz.

Morphing TH-F7E to TH-F6A

This mod should unlock TX on 220MHz band for TH-F7E, but...
One tells that TH-F6A and TH-F7E is the same transceiver, others said that some parts are missing on TH-F7E, including firmware. I tried anyway to transform this transceiver. The type setting diode D703 which was left blank by default, has been soldered in place. When first turned on, the transceiver resets itself, but the TX on 220MHz didn't worked.

I have looked on electronic schematic from service manual and there are missing parts indeed between TH-F7E/A and TH-F6A. Not only capacitors, coils and resistors are missing, but the whole part of RF power amplification chain for 220MHz band, including the final RF power transistor too. So, don't dream like I did, the TH-F7E/A could never ever be the TH-F6A !!!

What changed actually, was the B band limits, which they changed according to TH-F6A type, see table below, otherwise almost everything remained the same.

New B-band Limits
1 0.1000-1.7999 MHz
2 1.8000-29.6999 MHz
3 29.7000-53.9999 MHz
4 54.0000-107.9999 MHz
5 108.0000-136.9999 MHz
6 137.0000-173.9999 MHz
7 174.0000-215.9999 MHz
8 216.0000-399.9999 MHz
9 400.0000-469.9999 MHz
10 470.0000-805.9999 MHz
11 806.0000-1299.9999 MHz

Service Menu

Service menu is used to tune/detune modulation, BFO offset, S-meter, RF power, etc. To enter in Service Menu mode an internal contact need to be closed. It is very annoying or maybe inappropriate to open your transceiver every time you want to enter into Service Mode, so inspired by ohers I placed a micro reed contact internally to close it remotely using a magnet, see pics below:

First, please read documentation, especially Service Manual. I'm not responsible for any damage you can do to your transceiver, you will do it at your own risk!!!

To navigate between service menu, the joystick is used, left/right to switch between options, dial knob or up/down to choose the value and MNU to write the value down to EEPROM. Pressing the LAMP key will turn on the light and enter to the normal menu, other keys work as normally. To exit from service menu the transceiver must be powered off.

I'll not describe again what was written in service manual, thefore please read documentation carefully!!

Below are my default settings from service menu, but note that these settings differs from transceiver to transceiver due component tolerance:

Service Menu Default Values
VOLT:XX :49 Set power supply voltage to 6.5V
435.100 A/B TCXO:4C :4C PLL reference TCXO adjustment
137.000 A BPF:25 f1:25 Band Pass Filter Tune Level
144.000 A BPF:30 f2:30 Band Pass Filter Tune Level
173.995 A BPF:4C f3:4C Band Pass Filter Tune Level
0.540 B BPF:23 f1:23 Band Pass Filter Tune Level
0.800 B BPF:57 f2:57 Band Pass Filter Tune Level
1.200 B BPF:C0 f3:C0 Band Pass Filter Tune Level
3.000 B BPF:04 f1:04 Band Pass Filter Tune Level
6.550 B BPF:5D f2:5D Band Pass Filter Tune Level
10.090 B BPF:B8 f3:B8 Band Pass Filter Tune Level
50.100 B BPF:1E f1:1E Band Pass Filter Tune Level
90.100 B BPF:53 f2:53 Band Pass Filter Tune Level
107.900 B BPF:76 f3:76 Band Pass Filter Tune Level
118.100 B BPF:12 f1:12 Band Pass Filter Tune Level
146.100 B BPF:33 f2:33 Band Pass Filter Tune Level
175.900 B BPF:65 f3:65 Band Pass Filter Tune Level
146.050 B USB 2nd:34-25:34 B Band 2nd Local Oscillator -2.5KHz
146.050 B USB 2nd:7E 0:7E B Band 2nd Local Oscillator 0KHz
146.050 B USB 2nd:CA+25:CA B Band 2nd Local Oscillator +2.5KHz
145.800 B BFO:72 CW:FF SSB Offset Frequency CW
145.800 B BFO:BA LS:BA SSB Offset Frequency LSB
145.800 B BFO:11 US:11 SSB Offset Frequency USB
145.200 A FM SQ:XX 1:0F Squelch Threshold and Level 2 Voltage
145.200 A FM SQ:XX 2:08 Squelch Threshold and Level 2 Voltage
434.700 A FM SQ:XX 1:0F Squelch Threshold and Level 2 Voltage
434.700 A FM SQ:XX 2:04 Squelch Threshold and Level 2 Voltage
0.252 B AM SQ:XX 1:FF Squelch Threshold and Level 2 Voltage
0.252 B AM SQ:XX 2:FF Squelch Threshold and Level 2 Voltage
14.100 B AM SQ:XX 1:26 Squelch Threshold and Level 2 Voltage
14.100 B AM SQ:XX 2:1F Squelch Threshold and Level 2 Voltage
51.100 B FM SQ:XX 1:2C Squelch Threshold and Level 2 Voltage
51.100 B FM SQ:XX 2:24 Squelch Threshold and Level 2 Voltage
56.100 B FM SQ:XX 1:FF Squelch Threshold and Level 2 Voltage
56.100 B FM SQ:XX 2:FF Squelch Threshold and Level 2 Voltage
120.100 B AM SQ:XX 1:1E Squelch Threshold and Level 2 Voltage
120.100 B AM SQ:XX 2:1B Squelch Threshold and Level 2 Voltage
145.800 B FM SQ:XX 1:28 Squelch Threshold and Level 2 Voltage
145.800 B FM SQ:XX 2:24 Squelch Threshold and Level 2 Voltage
200.000 B FM SQ:XX 1:28 Squelch Threshold and Level 2 Voltage
200.000 B FM SQ:XX 2:24 Squelch Threshold and Level 2 Voltage
300.000 B FM SQ:XX 1:2E Squelch Threshold and Level 2 Voltage
300.000 B FM SQ:XX 2:28 Squelch Threshold and Level 2 Voltage
438.100 B FM SQ:XX 1:2E Squelch Threshold and Level 2 Voltage
438.100 B FM SQ:XX 2:26 Squelch Threshold and Level 2 Voltage
700.000 B FM SQ:XX 1:2E Squelch Threshold and Level 2 Voltage
700.000 B FM SQ:XX 2:26 Squelch Threshold and Level 2 Voltage
1270.100 B FM SQ:XX 1:3C Squelch Threshold and Level 2 Voltage
1270.100 B FM SQ:XX 2:2E Squelch Threshold and Level 2 Voltage
145.200 A FM SM:XX S1:4E Smeter Level First Segment
145.200 A FM SM:XX S9:65 Smeter Level All Segments
434.700 A FM SM:XX S1:4D Smeter Level First Segment
434.700 A FM SM:XX S9:65 Smeter Level All Segments
0.800 B AM SM:XX S1:7B Smeter Level First Segment
0.800 B AM SM:XX S9:A8 Smeter Level All Segments
14.100 B AM SM:XX S1:77 Smeter Level First Segment
14.100 B AM SM:XX S9:9F Smeter Level All Segments
51.100 B FM SM:XX S1:6F Smeter Level First Segment
51.100 B FM SM:XX S9:9A Smeter Level All Segments
90.100 B WFM SM:XX S1:21 Smeter Level First Segment
90.100 B WFM SM:XX S9:83 Smeter Level All Segments
120.100 B AM SM:XX S1:91 Smeter Level First Segment
120.100 B AM SM:XX S9:A7 Smeter Level All Segments
145.800 B FM SM:XX S1:78 Smeter Level First Segment
145.800 B FM SM:XX S9:99 Smeter Level All Segments
200.100 B WFM SM:XX S1:1D Smeter Level First Segment
200.100 B WFM SM:XX S9:69 Smeter Level All Segments
230.100 B FM SM:XX S1:62 Smeter Level First Segment
230.100 B FM SM:XX S9:89 Smeter Level All Segments
438.100 B FM SM:XX S1:67 Smeter Level First Segment
438.100 B FM SM:XX S9:93 Smeter Level All Segments
500.100 B WFM SM:XX S1:67 Smeter Level First Segment
500.100 B WFM SM:XX S9:93 Smeter Level All Segments
1270.100 B FM SM:XX S1:4E Smeter Level First Segment
1270.100 B FM SM:XX S9:7C Smeter Level All Segments
144.050 A Hi FM P:20 BAf1:20 Transmission Power Hi @ 6V
145.000 A Hi FM P:21 BAf1:21 Transmission Power Hi @ 6V
145.995 A Hi FM P:22:BAf3:22 Transmission Power Hi @ 6V
144.050 A Low FM P:1D BAf1:1D Transmission Power Low @ 6V
145.000 A Low FM P:1C BAf2:1C Transmission Power Low @ 6V
145.995 A Low FM P:1D BAf3:1D Transmission Power Low @ 6V
144.050 A EL FM P:14 BAf1:14 Transmission Power EL @ 6V
145.000 A EL FM P:14 BAf2:14 Transmission Power EL @ 6V
145.995 A EL FM P:14 BAf3:14 Transmission Power EL @ 6V
430.050 A Hi FM P:27 BAf1:27 Transmission Power Hi @ 6V
435.000 A Hi FM P:28 BAf2:28 Transmission Power Hi @ 6V
439.995 A Hi FM P:2B BAf3:2B Transmission Power Hi @ 6V
430.050 A Low FM P:24 BAf1:24 Transmission Power Low @ 6V
435.000 A Low FM P:22 BAf2:22 Transmission Power Low @ 6V
439.995 A Low FM P:24 BAf3:24 Transmission Power Low @ 6V
430.050 A EL FM P:17 BAf1:17 Transmission Power EL @ 6V
435.000 A EL FM P:17 BAf2:17 Transmission Power EL @ 6V
439.995 A EL FM P:17 BAf3:17 Transmission Power EL @ 6V
144.050 A Hi FM P:6F 7f1:6F Transmission Power Hi @ 7.4V
145.000 A Hi FM P:6F 7f2:6F Transmission Power Hi @ 7.4V
145.995 A Hi FM P:70 7f3:70 Transmission Power Hi @ 7.4V
144.050 A Low FM P:20 7f1:20 Transmission Power Low @ 7.4V
145.000 A Low FM P:20 7f2:20 Transmission Power Low @ 7.4V
145.995 A Low FM P:20 7f3:20 Transmission Power Low @ 7.4V
144.050 A EL FM P:14 7f1:14 Transmission Power EL @ 7.4V
145.000 A EL FM P:12 7f2:12 Transmission Power EL @ 7.4V
145.995 A EL FM P:14 7f3:14 Transmission Power EL @ 7.4V
430.050 A Hi FM P:6E 7f1:6E Transmission Power Hi @ 7.4V
435.000 A Hi FM P:73 7f2:73 Transmission Power Hi @ 7.4V
439.995 A Hi FM P:78 7f3:78 Transmission Power Hi @ 7.4V
430.050 A Low FM P:29 7f1:29 Transmission Power Low @ 7.4V
435.000 A Low FM P:28 7f2:28 Transmission Power Low @ 7.4V
439.995 A Low FM P:29 7f3:29 Transmission Power Low @ 7.4V
430.050 A EL FM P:17 7f1:17 Transmission Power EL @ 7.4V
435.000 A EL FM P:16 7f2:16 Transmission Power EL @ 7.4V
439.995 A EL FM P:17 7f3:17 Transmission Power EL @ 7.4V
144.050 A Hi FM P:50 13f1:50 Transmission Power Hi @ 13.8V
145.000 A Hi FM P:52 13f2:52 Transmission Power Hi @ 13.8V
145.995 A Hi FM P:55 13f3:55 Transmission Power Hi @ 13.8V
144.050 A Low FM P:35 13f1:35 Transmission Power Low @ 13.8V
145.000 A Low FM P:37 13f2:37 Transmission Power Low @ 13.8V
145.995 A Low FM P:38 13f3:38 Transmission Power Low @ 13.8V
144.050 A EL FM P:1F 13f1:1F Transmission Power EL @ 13.8V
145.000 A EL FM P:1F 13f2:1F Transmission Powerr EL @ 13.8V
145.995 A EL FM P:20 13f3:20 Transmission Power EL @ 13.8V
430.050 A Hi FM P:65 13f1:65 Transmission Power Hi @ 13.8V
435.000 A Hi FM P:69 13f2:69 Transmission Power Hi @ 13.8V
439.995 A Hi FM P:70 13f3:70 Transmission Power Hi @ 13.8V
430.050 A Low FM P:44 13f1:44 Transmission Power Low @ 13.8V
435.000 A Low FM P:47 13f2:47 Transmission Power Low @ 13.8V
439.995 A Low FM P:4B 13f3:4B Transmission Power Low @ 13.8V
430.050 A EL FM P:26 13f1:26 Transmission Power EL @ 13.8V
435.000 A EL FM P:27 13f2:27 Transmission Power EL @ 13.8V
439.995 A EL FM P:29 13f3:29 Transmission Power EL @ 13.8V
144.050 A Low FM BAL:3C f1:3C DCS Balance
145.000 A Low FM BAL:3B f2:3B DCS Balance
145.995 A Low FM BAL:3C f3:3C DCS Balance
430.050 A Low FM BAL:2C f1:2C DCS Balance
435.000 A Low FM BAL:2B f2:2B DCS Balance
439.995 A Low FM BAL:2A f3:2A DCS Balance
144.050 A Low FM MAX:74 f1:74 Max Deviation
145.000 A Low FM MAX:71 f2:71 Max Deviation
145.995 A Low FM MAX:70 f3:70 Max Deviation
430.050 A Low FM MAX:1E f1:1E Max Deviation
435.000 A Low FM MAX:1D f2:1D Max Deviation
439.995 A Low FM MAX:1C f3:1C Max Deviation
144.050 A Low FM TON:9E f1:9E CTCSS Deviation
145.000 A Low FM TON:97 f2:97 CTCSS Deviation
145.995 A Low FM TON:94 f3:94 CTCSS Deviation
430.050 A Low FM TON:3D f1:3D CTCSS Deviation
435.000 A Low FM TON:3D f2:3D CTCSS Deviation
439.995 A Low FM TON:3B f3:3B CTCSS Deviation
144.050 A Low FM DCS:6E f1:6E DCS Deviation
145.000 A Low FM DCS:6E f2:6E DCS Deviation
145.995 A Low FM DCS:6E f3:6E DCS Deviation
430.050 A Low FM DCS:24 f1:24 DCS Deviation
435.000 A Low FM DCS:24 f2:24 DCS Deviation
439.995 A Low FM DCS:21 f3:21 DCS Deviation
144.040 A Low FM 96:8C f1:8C 9600bps Deviation
145.000 A Low FM 96:86 f2:86 9600bps Deviation
145.995 A Low FM 96:82 f3:82 9600bps Deviation
430.050 A Low FM 96:2C f1:2C 9600bps Deviation
435.000 A Low FM 96:2C f2:2C 9600bps Deviation
439.995 A Low FM 96:2C f3:2C 9600bps Deviation
145.000 A VOX:00 1:00 VOX Sensitivity
145.000 A VOX:00 9:00 VOX Sensitivity

Note that for 220MHz band, the power settings in Service Menu for 6V, 7.4V and 13.8V are all set to FF in EEPROM. Programming them does nothing.


Software & Programming Interface

To be continued ...
